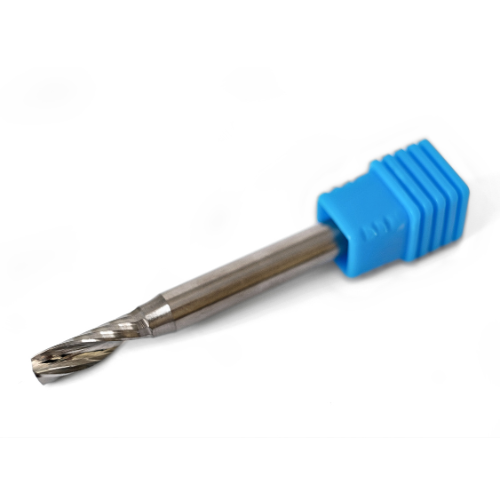

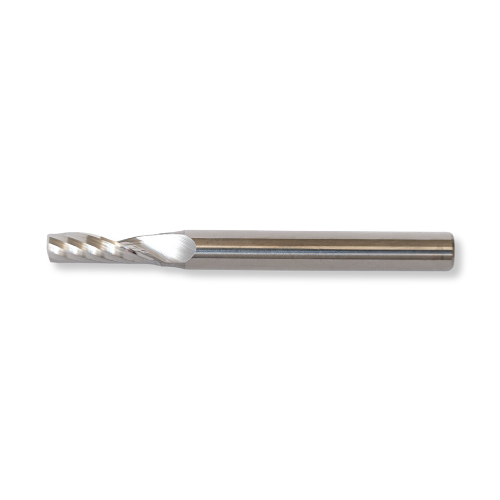

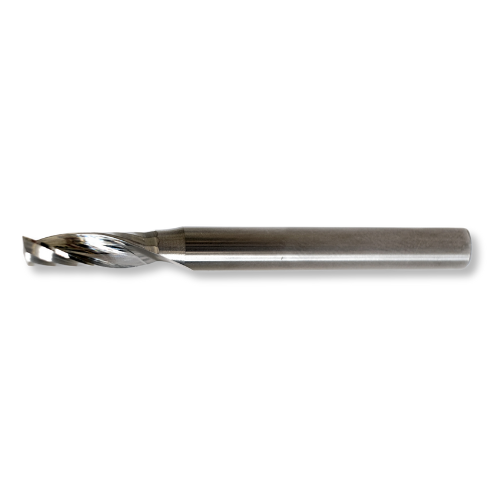

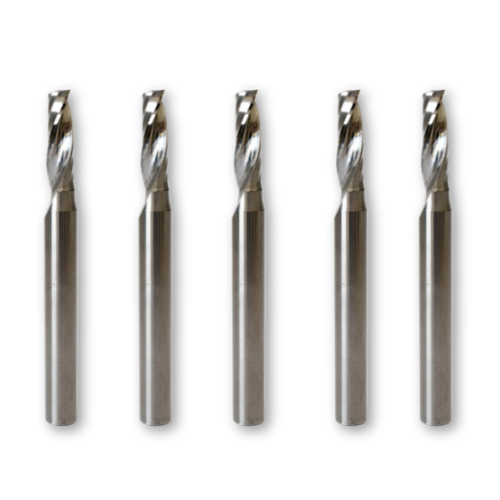

Router bits Ø5/Ø6 16mm 5pcs

Router bits R205 with routing diameter 5mm and routing depth 16mm for aluminum composite material

This versatile R205 router bit is designed for precision machining in digital cutting systems. These milling router bits R205 have a routing diameter of 5mm and routing depth of 16mm and are suitable for engraving, milling, drilling, routing a wide range of different aluminum composite material, e.g. Dibond, Alupanel, Gobond, Dilite, IGEPA Bond Premium, Basic IGPA, Alucobond, Reynobond, Dibond Digital, Dilite. Router bits R205 can cut through both the aluminum and polyethylene or mineral core layers.

The R205 routers are designed for industrial applications such as signage manufacturing, architectural cladding, exhibition stands, interior design elements, digital printing and advertising displays.

There is also a milling bit R505 which has a coating.

Suitable for machining the following materials: Aluminium composite (ACM), aluminium alloys, expanded PVC, polyethylene foam (PE), polyurethane foam (PUR), hard paper, nylon (PA 6.6), polycarbonate (PC), polyethylene (PE), PET, PETG, acrylic (PMMA), polypropylene (PP), rigid foam boards in PUR or PMI, MDF, laminated wood, plywood, and XPS.

Routing diameter: 5mm

Max. routing depth: 16mm

Diameter of shank: 6mm

Total length: 60mm

Max. rotations speed (1/min): 50000rpm

Application: for any routing tool head which requires router shank diameter of 6mm, e.g. Zund Cutter + R45-s / RM-A / RM-A QC / RM-L / RM-S
